ALMEMO® data acquisition unit Precision measuring device
Description
A single instrument to make all your recordings fully compatible with all your sensors without constraints! . Ergonomic case with IP54 shock protection. 16-bit delta-sigma analog converter. 59 KB internal memory (12,000 values), USB interface, RS232, Ethernet... . Up to 4 measurement inputs (16 calculation channels) . mV, V, mA, Hz, Imp, thermocouples, Ohms, Pt100, gauge bridge
Technical details

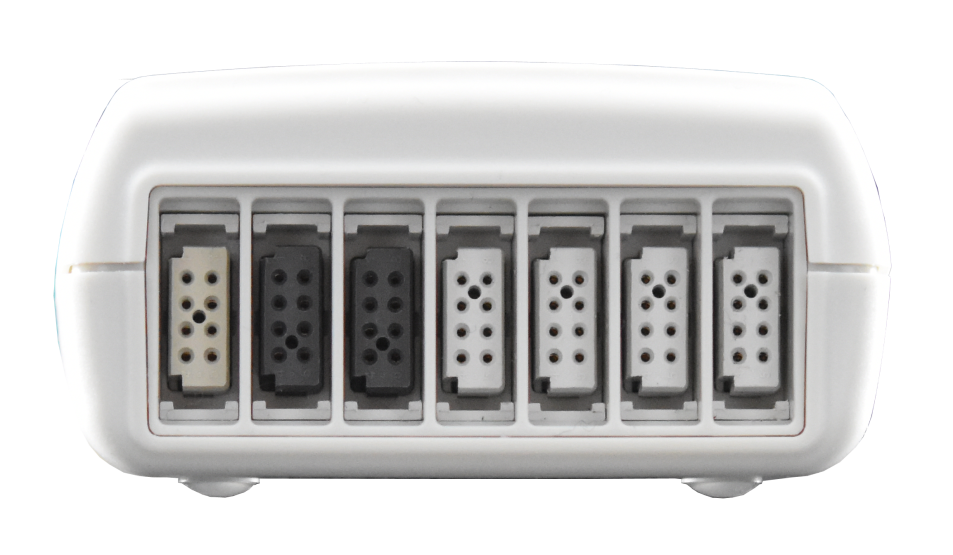

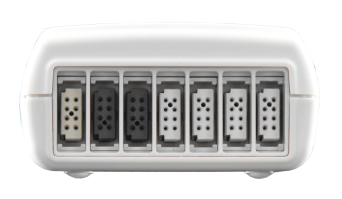

- 4 ALMEMO® measuring inputs compatible with all analog sensors, D6 and D7.
- High accuracy class A, up to AA with ALMEMO® digital sensors.
- Total sampling rate up to 2000 measurements per second.
- Galvanic isolation between analog inputs and power supply for optimal measurement quality.
- Internal memory of approximately 400,000 measurements, expandable via micro SD card.

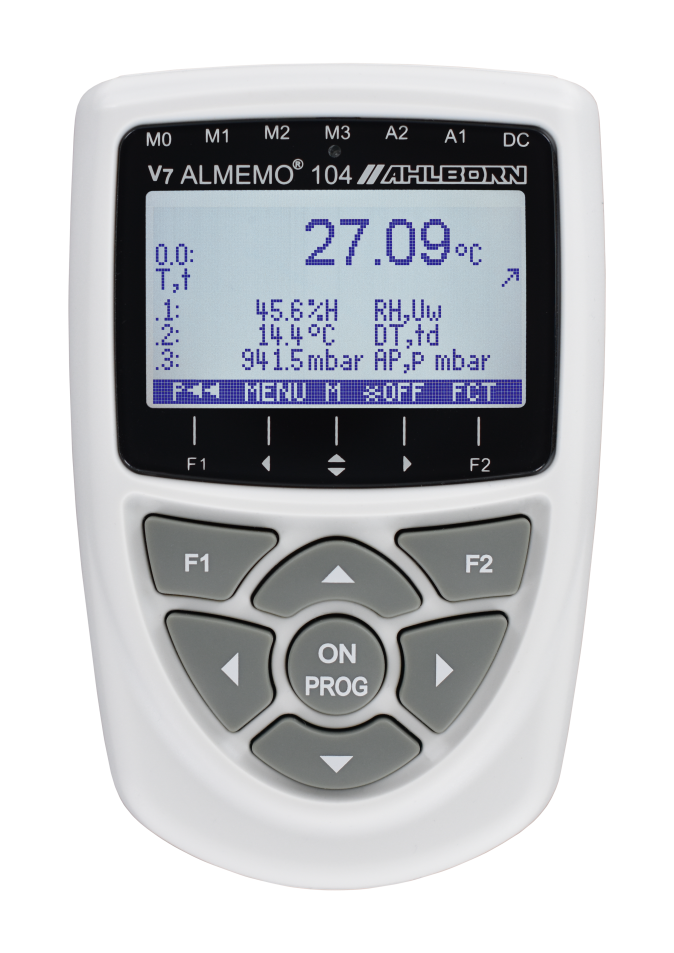

- 128x64 dot backlit graphic display, with 7 control keys, 4 of which are programmable.
- Flexible power supply: AA batteries, AC adapter or DC cable with galvanic isolation.
- Compact and lightweight housing: 127 × 83 × 42 mm, 290 g, with mounting options for mobile or stationary use.
Administrative documents
WIMESURE
Control / Measure / Industrial visionDescription
WIMESURE, a world player in the field of measurement and weighing, our adapted and innovative solutions will meet your needs for portable instruments, acquisition units, recorders, measurement transmitters and sensors in more than 80 quantities: temperature, air speed, humidity, dew point, pressure, force, weighing, weighing system, displacement...
