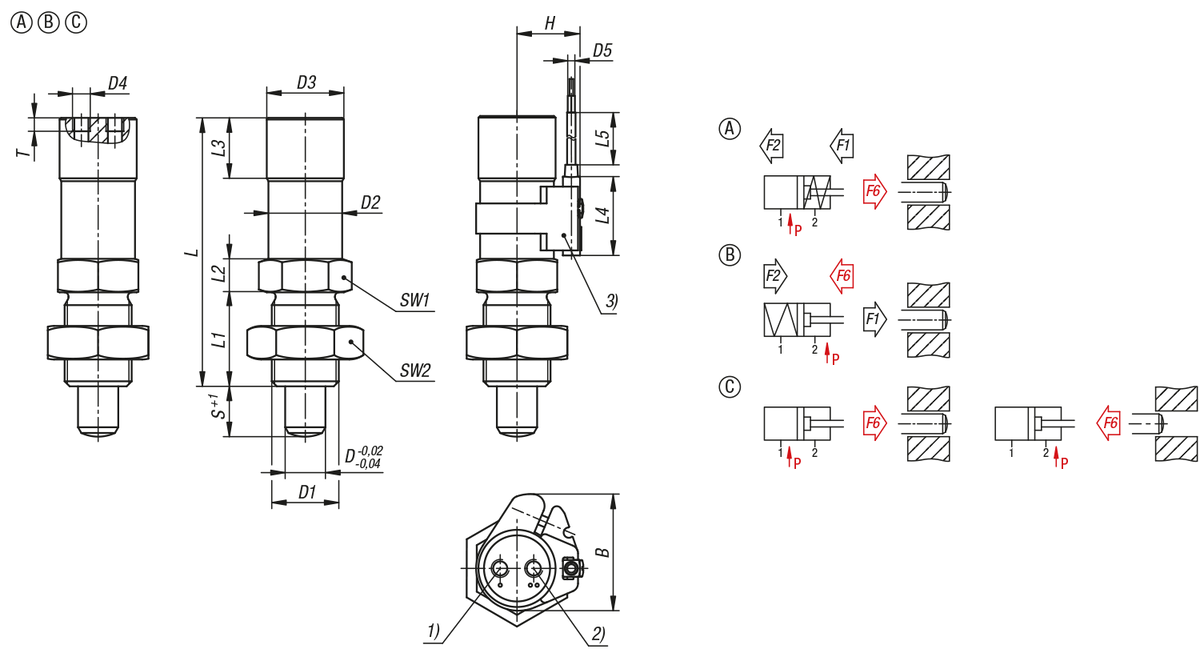

Pneumatic stainless steel indexing finger

Indexing fingers are used when it is necessary to avoid any change in the stop position under the effect of transverse forces.
For example, for length and height locking as well as position locking in machine, apparatus, furniture and special vehicle construction.

Pneumatic indexing fingers are actuated by compressed air. This allows the stop finger to be automatically retracted or extended.
The stopping point may also be located in an area where manual operation is not possible.

In the case of the model with status sensor, the actuation status can be recorded and processed electronically.
The magnetic field sensor used for this purpose is clamped in the grooved profile of the sensor holder. The status sensor and the sensor holder can be moved axially and fixed depending on the desired detection position.
