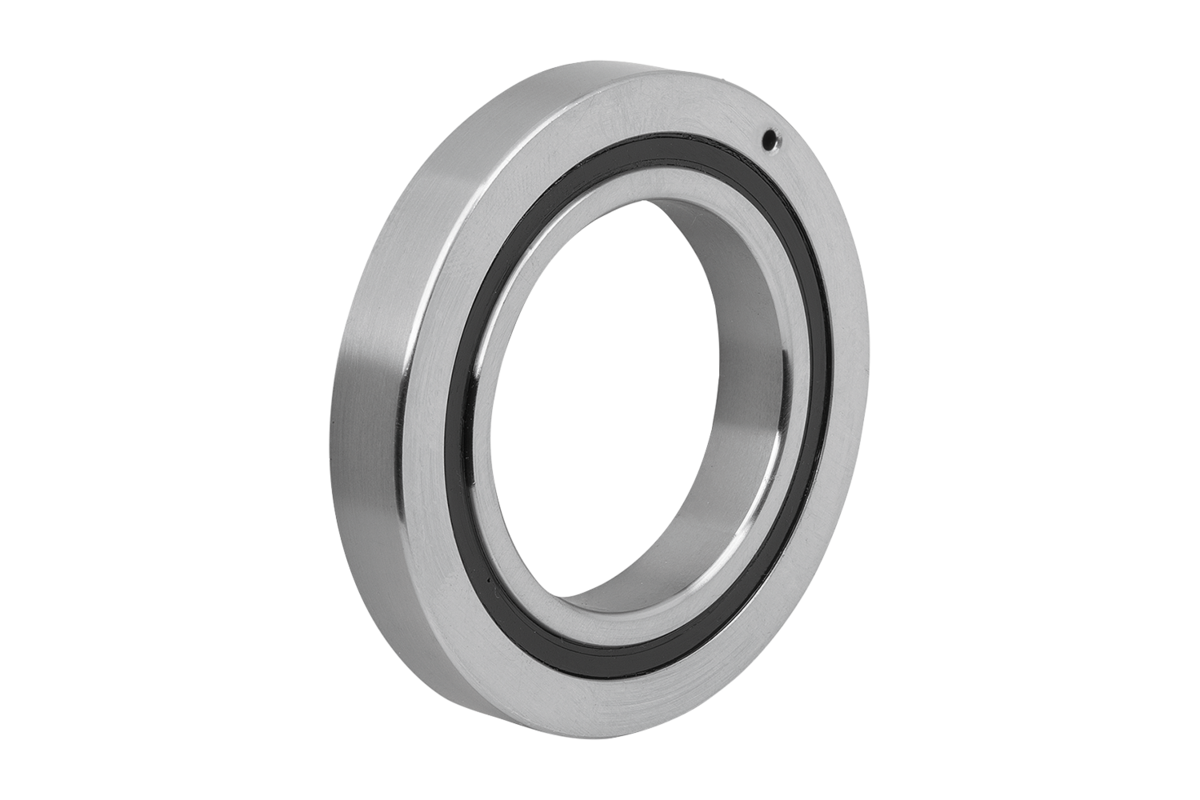

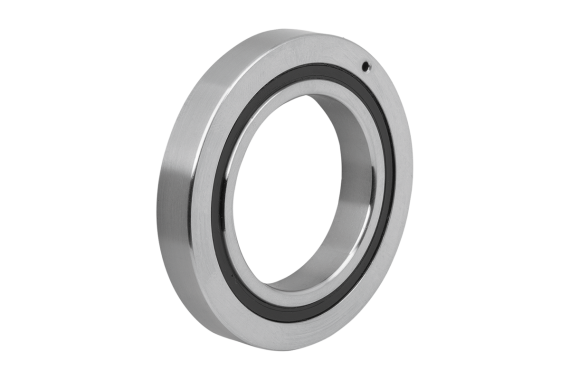

Steel crossed roller bearing
Steel crossed roller bearings consist of a single-piece inner ring and outer ring. This one-piece ring structure provides high rigidity, high precision, and quiet operation. The crossed roller bearing is suitable for both inner and outer ring rotation.
For the radial clearance of the bearing, you have the choice between two versions: bearing with normal clearance C1 (reference: 23831-0XXXXX) or pre-loaded bearing S1 (reference: 23831-1XXXXX).
Crossed roller bearings are manufactured in tolerance class P0.
The tolerance class refers to the radial and axial deviation between the inner ring and the outer ring.
Crossed roller bearings have a seal on both sides.
Other bearing clearances and tolerance classes are available upon request.
Matter :
Inner ring, outer ring and rolling elements made of bearing steel

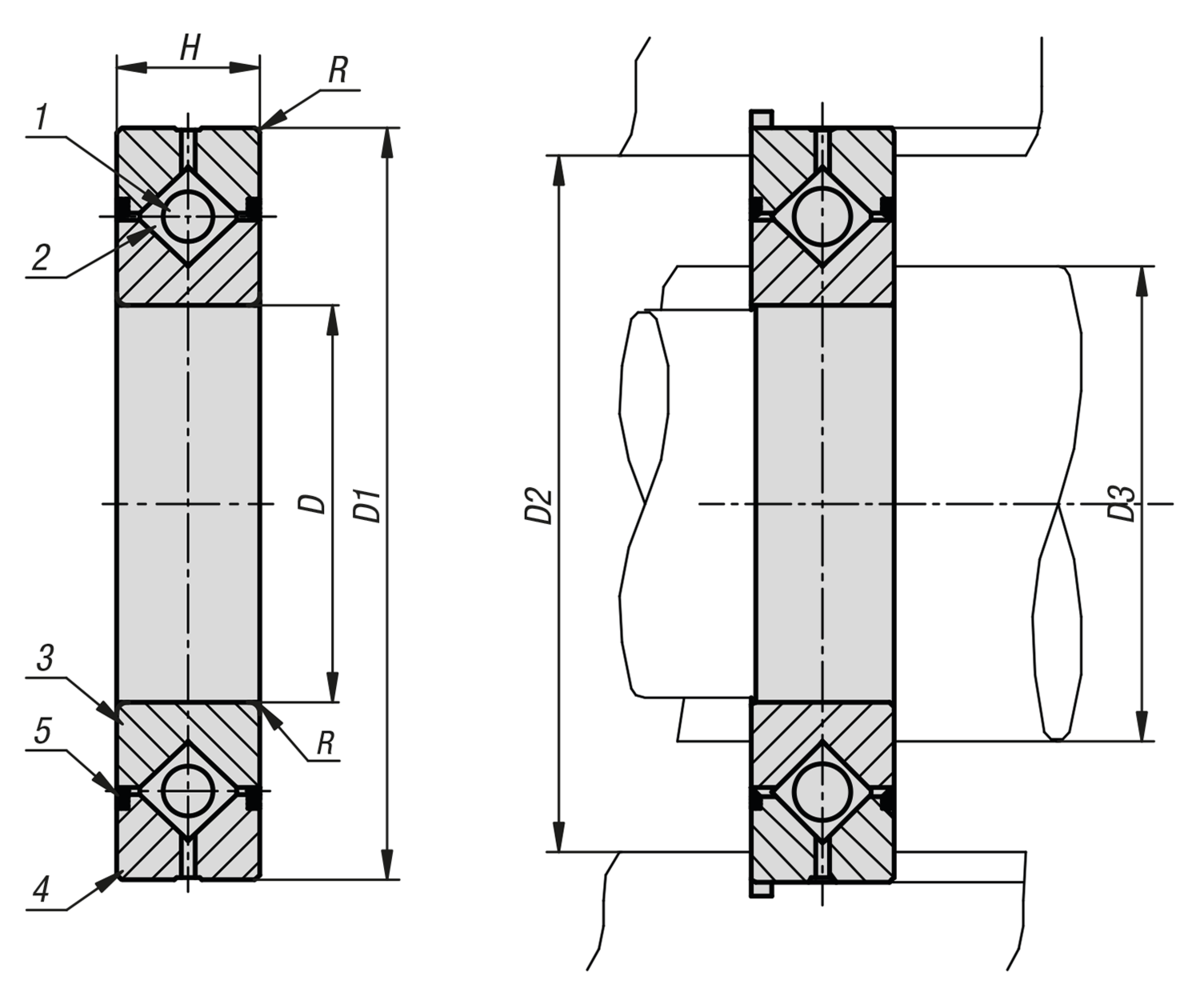

Drawing indication :
1) Rolls
2) Spacer
3) Inner ring
4) Outer ring
5) Sealing gasket
