Helmet with integrated face shield: MO-185-BL
Electrician helmet with integrated face shield.
-Protection of the head against mechanical shock and isolation
to the touch of the head on a bare live conductor.
Insulating shell up to 20 kV (ANSI Z89.1)
-Protection of the face against splashes of molten metal and
against the thermal dangers of an electric arc.

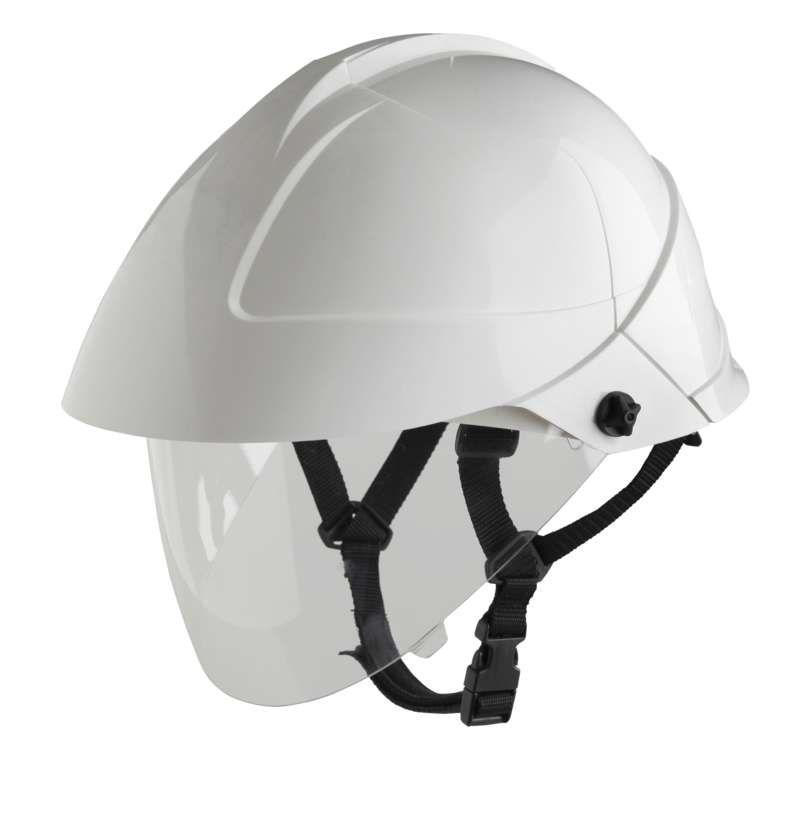

• MO-185-BL: white helmet with integrated face shield
• MO-185-R: red helmet with integrated face shield
• MO-185-J: yellow helmet with integrated face shield
• MO-185-B: blue helmet with integrated face shield
• High density polypropylene shell
• Adjustable textile chin strap, with four attachment points for the passage of the ears and
very easy “clip” closure
• Six-point textile cap with height adjustment (5 mm intervals)
• Size adjustable from 52 to 64 cm using a dial
• Protective face shield: resistant to UV, impact of molten metal, and energy and
heat of the electric arc
• Panoramic polycarbonate screen with anti-scratch and anti-fog treatment
• Fully retractable screen inside the helmet
• Recommended duration of use: 5 years for the shell and 2 years for the screen (screen
easily replaceable under ref. M-882677)
Mass: 820 gr
NORMATIVE REFERENCES
• Category III PPE compliant with Regulation (EU) 2016/425
• Helmet by Certottica: certificate no. 02041
• Shell
- NF EN 397 Mechanical impact tests
- NF EN 50365 Insulation 1000 V alternating, 1500 V direct
- Insulating shell up to 20 kV (ANSI Z89.1)
• Face shield
- IEC 61482-1-2 APC class 1 (4 kA-500 ms - distance 300 mm)
-GS-ET29
- NF EN 166 / NF EN 170 step number 2-1.2. (UV protection)
- Optical class: 2
- Resistance to mechanical impacts: B
- Resistance to electrical short circuits: 8
