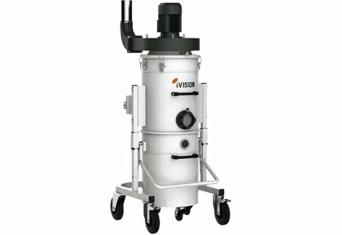

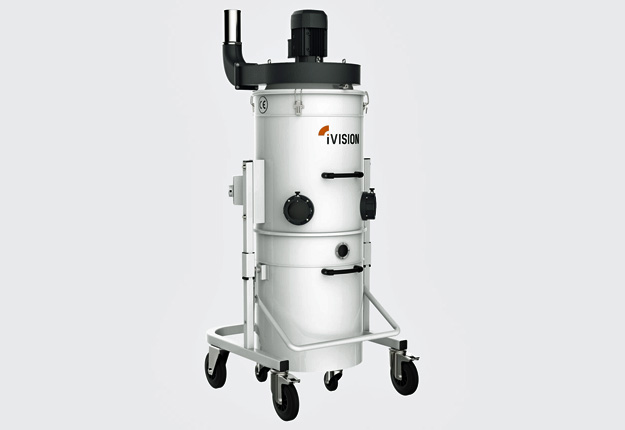

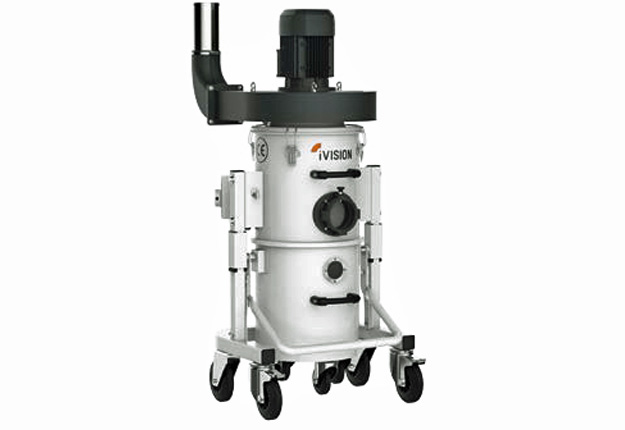

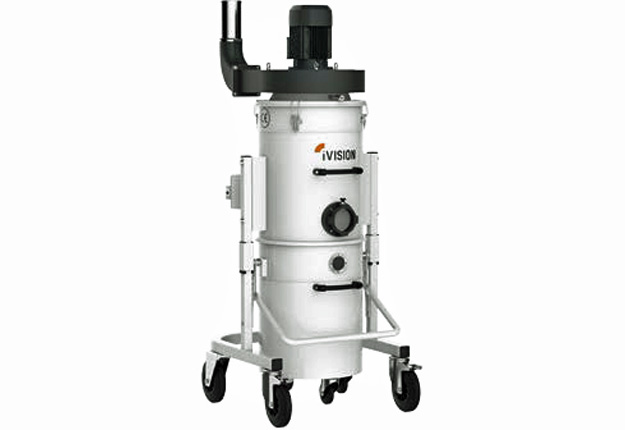

Industrial chip vacuum cleaner 1200 m3/h - EXTRUSION 100 - 1.5
The EXTRUSION range vacuum cleaners are powerful, advanced technology industrial vacuum cleaners with centrifugal fans intended for the extruded materials processing sector.
They are ideally suited to machines that cut and produce large quantities of chips.
Each vacuum cleaner in the EXTRUSION range is equipped with a type “M” filter, a high-performance filter specially made for this range which allows the collection of at least 99.9% of particles.
Unique in this field, the innovative suction system is ideal for the aluminum and PVC processing industry.
The use of fan vacuums in the production process increases efficiency by significantly reducing chip vacuuming times compared to a turbine system.
The speed of suction is due to the development of a greater air flow, which therefore acts on larger diameters and thus allows the capture of particles, even the smallest and most volatile.
EXTRUSION fan vacuum cleaners have established themselves in the global market as the best systems for the extraction of ALU and PVC chips and are chosen by the most important companies in the sector to improve their production processes.
Model on casters, fully enclosed and particularly suitable for single head machines.
Very quiet operation 78 dB (A).
Technical characteristics :
- TRI 400 V motor, power 1.5 kW.
- Flow rate 1200 m3/h.
- Vacuum 25 mbar.
- 1 suction outlet Ø 100 mm.

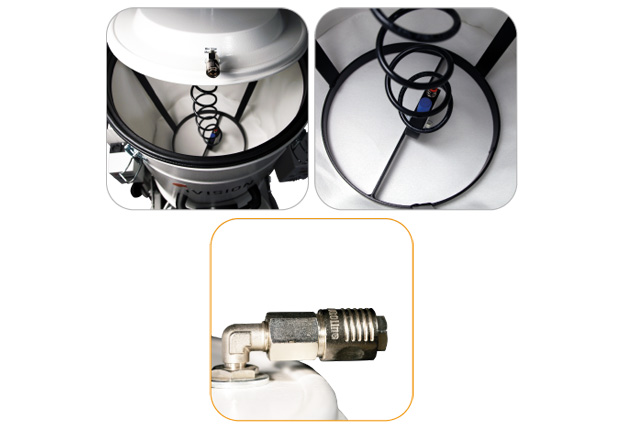

- Pneumatic connection for self-cleaning of filter bags.
- Kit for reducing electrostatic charges (non-ATEX).

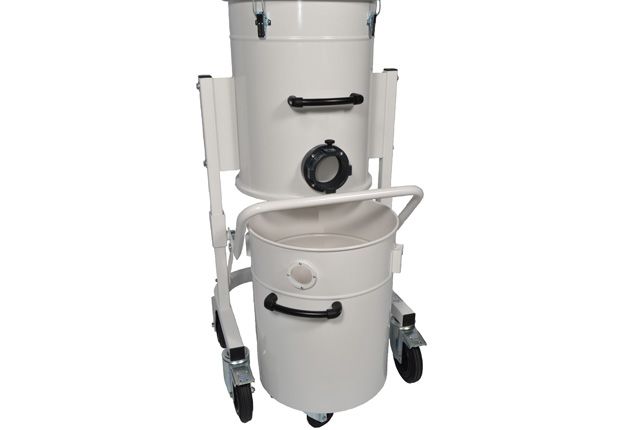

- Sheet metal chip bin on wheels, capacity 100 l.
- Equipped with a suction hose with a length of 2000 mm adapted to the machine model.
Dimensions (L x W x H): 730 x 800 x 1810 mm.
Weight of the machine: 110 kg.
Also available in automatic start version with the machine (OPTIONAL).
